不锈钢矩形焊接水箱
介绍
达州洪聚环保科技有限公司

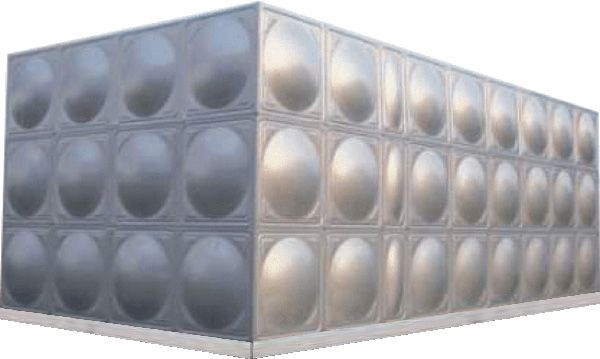

不锈钢矩形焊接水箱（SQBCCY）
水箱板块采用高强度冲压工艺制作成标准板块焊接而成。
材质选用食品级不锈钢材（SUS304-2B)焊丝采用ER308具有较强的耐腐性。
结构设计合理，全焊接现场组合。强度高，密封性好，防止水质二次污染，永不渗漏。
重量轻，是普通板水箱的二分之一，价格适中。
水箱容积为1—1000m3，有多种规格，供设计选用。用户可根据设计需要提出水箱的长、宽、高(标准板块为1m×1m、1m×0.5m)任意组合。安装现场无特殊要求，并可提供保温服务。
外观整洁、光亮、美观、实用。
BU XIU GANG JU XING HAN JIE SHUI XIANG（SQBCCY）
Tank plate using high strength stamping process to make a standard plate welded together.
Material selection food grade stainless steel (SUS304~2 b) wire using ER308 has strong decay resistance.
Structural design is reasonable, the whole welding field combination. High strength, good tightness, water
quality to prevent secondary pollution, never leakage.
Light weight, is common plate tank of happiness, price moderate.
Tank volume for 1~1000 m 3, a variety of specifications for design selection. The user can design according
to need to put in water tank of length, width and height (standard plate for 1 m multiply one m, 1 m x 0.5 m)
arbitrary combination. Installation site no special requirements,and can provide services.
Neat in appearance, bright, beautiful and practical.

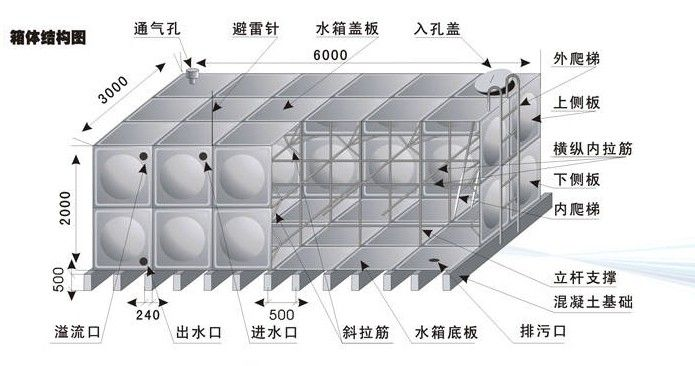

不锈钢矩形焊接水箱结构表
不锈钢焊接水箱常见规格
|
型号 |
容积（m³） |
有效容积（m³） |
长L（m) |
宽B(m) |
高H（m） |
水箱支座（n) |
备注 |
|
SQBCCY~1 |
1 |
0.85 |
1000 |
1000 |
1000 |
3 |
0 |
|
SQBCCY-2 |
2 |
1.7 |
2000 |
1000 |
1000 |
5 |
0 |
|
SQBCCY-3 |
3 |
2.7 |
2000 |
1000 |
1500 |
5 |
0 |
|
SQBCCY-4 |
4 |
3.7 |
2000 |
1000 |
2000 |
5 |
0 |
|
SQBCCY-6 |
6 |
5.4 |
2000 |
2000 |
1500 |
5 |
0 |
|
SQBCCY-8 |
8 |
7.4 |
2000 |
2000 |
2000 |
5 |
0 |
|
SQBCCY-9 |
9 |
8.1 |
3000 |
2000 |
1500 |
7 |
0 |
|
SQBCCY~10 |
10 |
9.4 |
2000 |
2000 |
2500 |
5 |
0 |
|
SQBCCY-12 |
12 |
11.1 |
3000 |
2000 |
2000 |
7 |
0 |
|
SQBCCY-15 |
15 |
14.1 |
3000 |
2000 |
2500 |
7 |
0 |
|
SQBCCY-18 |
18 |
16.65 |
3000 |
3000 |
2000 |
7 |
0 |
|
SQBCCY-20 |
20 |
18.8 |
4000 |
2000 |
2500 |
9 |
0 |
|
SQBCCY-24 |
24 |
22.2 |
4000 |
3000 |
2000 |
9 |
0 |
|
SQBCCY-30 |
30 |
28.2 |
4000 |
3000 |
2500 |
9 |
|
